BPM310 Automated Programmer

The most powerful universal programmer on the planet

Up to 6 fully universal programming sites with up to 48 sockets, producing the fastest programming times in the smallest footprint

BPM310 Automated programming system

Max Sockets

Devices Per Hour

10th Generation Sites Technology

Future-proof investment with true universal site technology

UFS 2.1

Eight up UFS Adapter for BGA 153;
Fast: Up to 440 MB per second Read & 201 MB per second Write

WhisperTeach™

Automatic Z-Teach— reduces setup time per job and improves accuracy & quality

Future Proof

Six 10th Generation Sites

Provides full universal support for UFS*, eMMC HS400, MCU, NAND & Serial Flash, at incredible speeds with up to 48 devices programmed concurrently.

10th Generation site technology offers the broadest support in the industry at unsurpassed programming speeds. BPM supports more devices on a single site platform than any other

*optional UFS Kit

WhisperTeach™ Auto Z-Teach

BPM’s advanced patented Auto-Z teach technology eliminates the need for a highly-skilled operator to set critical Z-height for pick-and-place functions. WhisperTeach™ offers faster setup times and improved yields.  In addition, WhisperTeach™ eliminates common Z-height errors such as miss picks, miss place, and socket continuity flaws.

Max Sockets

Devices per Hour

Features

Find out more about BPM310 APS

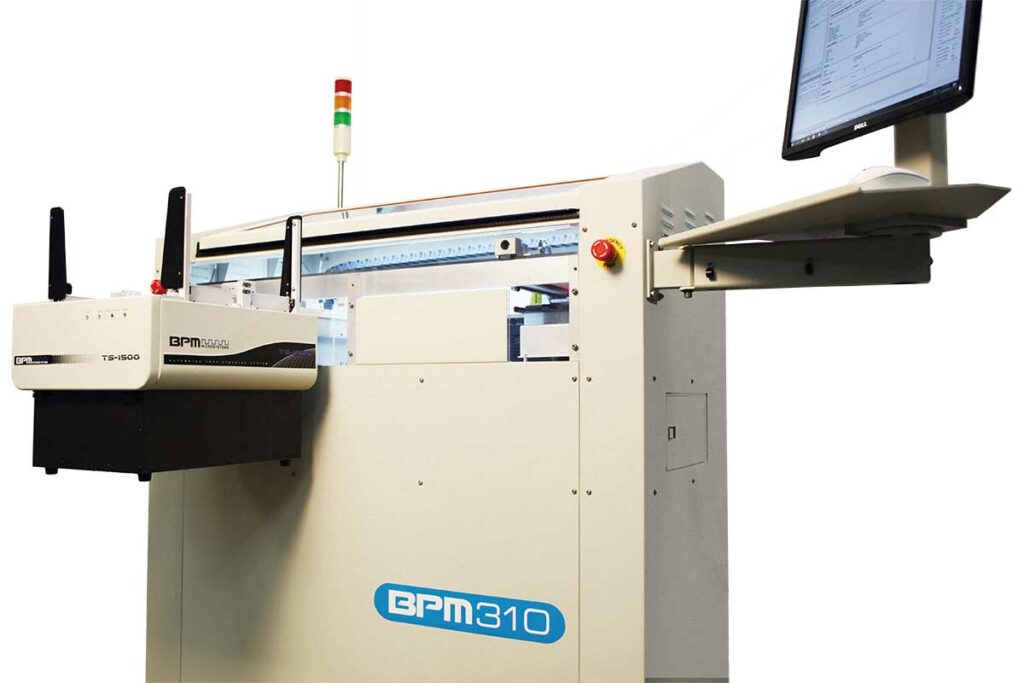

The BPM310 is the latest 10th Generation Automated Programmer from BPM Microsystems. It features up to 6 fully universal programming sites with up to 48 sockets, producing the fastest programming times in the smallest footprint while offering advanced features such as WhisperTeach™,    BPM.NCRYPT, and on-the-fly vision alignment. Unlike other products in the industry, the BPM310 offers true universal support, including UFS, Microcontrollers, Memory, and Complex Devices that can be configured as needed to support the smallest chip-scale-package to the largest QFP, all at blazing speeds.

Specifications

Up to six fully universal programming sites with up to 48 sockets, producing the fastest programming times in the smallest footprint

BPM310 Image Gallery

Get a close-up view of images and videos of the BPM310 Automated Programmer

Automated Peripherals

 Automated Peripherals to maximize/customize your BPM310
• 3D Inspection • Tape In/Out • Label Presenter • Stationary Tray
• Tray Stacker  • Tray Shuttle • Fiber Laser

Advanced

Fastest, Most Reliable UFS/eMMC/Cyber-Security

Unlike other products in the industry, the BPM310 offers true universal support, including UFS, Microcontrollers, Memory, and Complex Devices that can be configured as needed to support the smallest chip-scale-package to the largest QFP, all at blazing speeds.

UFS 2.1

8-Up Socket for fastest, highest-density programming solution. Read Speeds up to 440 MB/Sec

eMMC HS400

eMMC devices have large, complex data patterns (4GB and up) that can be difficult to set up and prone to operator error. Previously, you had to manually load each eMMC data pattern one by one through the buffer loader. Depending on the complexity, this step was repeated three or more times. Each data pattern also required a manual calculation of data offsets, with no way to provide the checksum. As eMMC devices have gotten larger, the technical challenge of the file structure has become more complicated.

That is, until now.

Cybersecurity Solutions from BPM

Unlike other security solutions that are expensive, rigid, and one-size-fits-all, BPM offers a range of options based on your particular needs

• Flexible:  It can integrate with your existing security systems

• Scalable: we don’t require a separate HSM for each of our automated systems; One HSM (or secure server) can support several BPM high-speed programming systems

• Affordable:  BPM does not charge per device and all of our APS is enabled to support encryption; you have an initial investment with no usage fees

BPM’s cyber-security solutions can utilize your existing HSM, secure server, or many other networked and offline data sources. BPM Microsystems can also provide a turn-key package.

Certificate of Conformity

Schedule your consultation

Learn if the BPM310 is a good match for your particular needs
