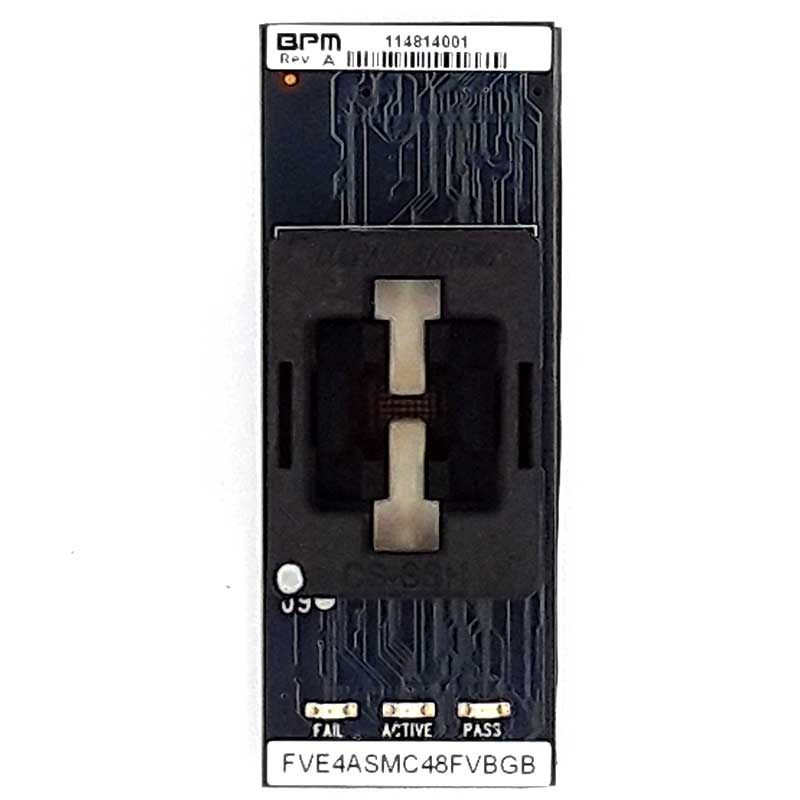

FVE4ASMC48FVBGB Socket Card

$725.00

Socket Card, 48 Pin BGA

Socket Cards that are out of stock are built to order. This socket card ships 10-12 working days after order is confirmed

SKU: FVE4ASMC48FVBGB Category:

Description

Socket Card, 48 Pin BGA

B=8.15X6.15 P=0.8 G=8X6 BD=.35

Spansion: S29AL016D70BA-02, S29AL016D70BF-02, S29AL016J55BF-01, S29AL016J55BF-02, S29AL016J55BF-03, S29AL016J55BF-04, S29AL016J55BF-R1, S29AL016J55BF-R2, S29AL016J55BFI02, S29AL016J55BFI04, S29AL016J55BFIR2, S29AL016J55BFN02, S29AL016J55BFN04, S29AL016J55BFNR2, S29AL016J70BF-01, S29AL016J70BF-02, S29AL016J70BF-03, S29AL016J70BF-04, S29AL016J70BF-R1, S29AL016J70BF-R2, S29AL016J70BFI02, S29AL016J70BFI04, S29AL016J70BFIR2, S29AL016J70BFN02, S29AL016J70BFN04, S29AL016J70BFNR2, S29GL032N90BAI040, S29GL032N90BAI042, S29GL032N90BAI043, S29GL032N90BFI040, S29GL032N90BFI042, S29GL032N90BFI043, S29GL064N110BAA040, S29GL064N110BAA042, S29GL064N110BAA043, S29GL064N110BAI040, S29GL064N110BAI042, S29GL064N110BAI043, S29GL064N110BFA040, S29GL064N110BFA042, S29GL064N110BFA043, S29GL064N110BFI040, S29GL064N110BFI042, S29GL064N110BFI043, S29GL064N90BA-03, S29GL064N90BAA040, S29GL064N90BAA042, S29GL064N90BAA043, S29GL064N90BAI040, S29GL064N90BAI042, S29GL064N90BAI043, S29GL064N90BF-03, S29GL064N90BFA040, S29GL064N90BFA042, S29GL064N90BFA043, S29GL064N90BFI03, S29GL064N90BFI040, S29GL064N90BFI042, S29GL064N90BFI043, S29GL064S70BFI04, S29GL064S70BFV04, S29GL064S70BHI04, S29GL064S70BHV04, S29GL064S80BFI04, S29GL064S80BFV04, S29GL064S80BHI04, S29GL064S80BHV04, S29GL064S90BFI04, S29GL064S90BFV04, S29GL064S90BHI04, S29GL064S90BHV04, S29JL032H70BA-31, S29JL032H70BAI-31, S29JL032H70BF-31, S29JL032H70BFI-31, S29JL032H90BA-31, S29JL032H90BAI-31, S29JL032H90BF-31, S29JL032H90BFI-31, S29JL032J60BF310, S29JL032J60BF313, S29JL032J60BFI310, S29JL032J60BFI313, S29JL032J60BH310, S29JL032J60BH313, S29JL032J60BHI310, S29JL032J60BHI313, S29JL032J70BF310, S29JL032J70BF313, S29JL032J70BFI310, S29JL032J70BFI313, S29JL032J70BH310, S29JL032J70BH313, S29JL032J70BHI310, S29JL032J70BHI313, S29PL032J70BFI12, S29PL032J70BFI120, S29PL032J70BFI121, S29PL032J70BFI122, S29PL032J70BFI123, S29PL032J70BFW12, S29PL032J70BFW120, S29PL032J70BFW121, S29PL032J70BFW122, S29PL032J70BFW123, S29PL064J55BA-12, S29PL064J55BF-12, S29PL064J60BA-12, S29PL064J60BF-12, S29PL064J65BA-12, S29PL064J65BF-12, S29PL064J70BA-12, S29PL064J70BF-12

Additional information

Weight 1 oz
Dimensions 5 × 2 × 1 in
Package

BGA(48)

Body (mm)

8.15×6.15

Toe-Toe (mm)

N/A

T-Post:

Normal (Refer to BPWin Help)

Pitch (mm)

0.8

Pressure Plate

D05864AD

Replacement Socket

LSOCB48NA
